Our organization has established a sound and sophisticated infrastructure unit that spreads over a large area. We have divided our facility into different sections so as to execute all the business operations in a hassle-free manner. The unit is equipped with the technologically advanced computer system, machines and other amenities that are requisite in the manufacturing process. Further, we upgrade these machines on regular basis to avoid technical faults and sustain the level of production.
Inhouse Facilities
- Laser Cutting
- CNC Punching
- Stamping
- Sheet Metal Bending
- Welding and Fabrication
- Advanced Assembly
- Specialized Metal Works
- Metal Parts for Critical Applications
- Tool Room
AMADA Punch Press Machine
| Machine specifications | |
| Press model | EMZ3510NT/EMK3510NT EMZ3610NT/EMK3610NT |
| Press capacity | 300 kN (30.59 metric tons or 33.71 U.S. tons) 300 kN (30.59 metric tons or 33.71 U.S. tons) |
| Tool storage | 45 or 58*** stations (4AI) 45 or 58*** stations (4AI) 58 or 70*** stations (2AI) 58 or 70*** stations (2AI) |
| Max. sheet size | 1270 × 5000 mm (50 × 196.85”) 1525 × 5000 mm (60 × 196.85”) |
| Max. sheet thickness | 3.2 mm (0.126”) 3.2 mm (0.126”) |
| Max. sheet mass | 50 kg (110 lb) at F1 150 kg (330 lb) at F4 50 kg (110 lb) at F1 150 kg (330 lb) at F4 |
| Y-axis travel | 1270 mm (50”) 1525 mm (60”) |
| X-axis travel | 2500 mm (98.43”) 2500 mm (98.43”) |
| Punching accuracy | ±0.1 mm (0.004”)* ±0.07 mm (0.003”)* ±0.1 mm (0.004”)* ±0.07 mm (0.003”)* |

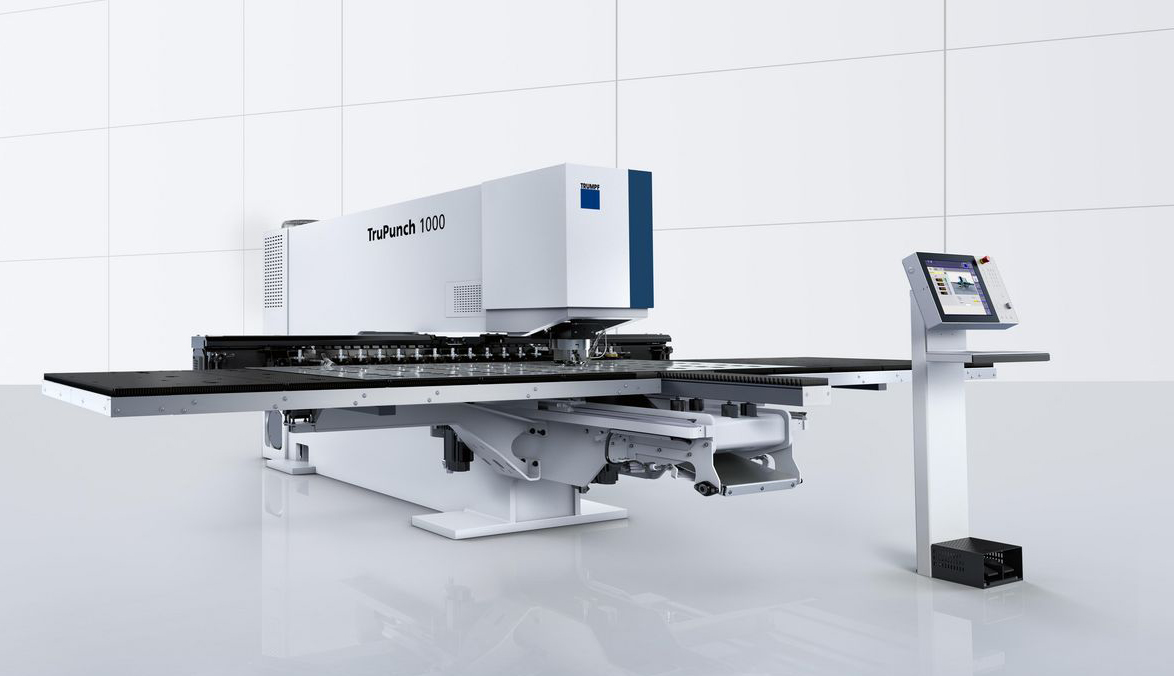

PUNCHING MACHINE (Trumpf TruPunch
1000)
Make: TRUMPF (Manufacturer: USA)
Capacity: (Bed Size : Up to 1250 X
2500, Capacity: 16 Tone)
Mild Steel: Up to 6MM thickness

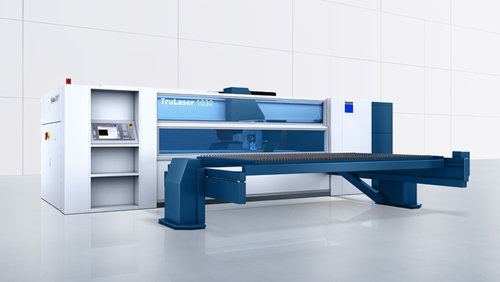

Trumpf Trulaser 1030
- Machine construction with a TruCoax 2.5 KW diffusion cooled RF laser resonator
- Cost-effective
- Productive Laser Cutting system in a small footprint.
- Requires half of the floor space of a typical 5 x 10 foot machine
- The laser cutter features 3-axis flying optics for high speed and accuracy: an X-axis working range of 120 in. and Y-axis of 60 in. with a maximum simultaneous XY speed of 3340 inches per minute.
- Laser Cutting, Turret Punching, Metal Enclosure, Lab Furniture. The TruLaser 1030 will cut a maximum thickness of 5/8 in. mild steel.
- The easy to use HMI features a touch panel located right on the machine and an integrated programming tool even operators with no Laser Cutting experience are able to program the machine to achieve outstanding results almost instantly.

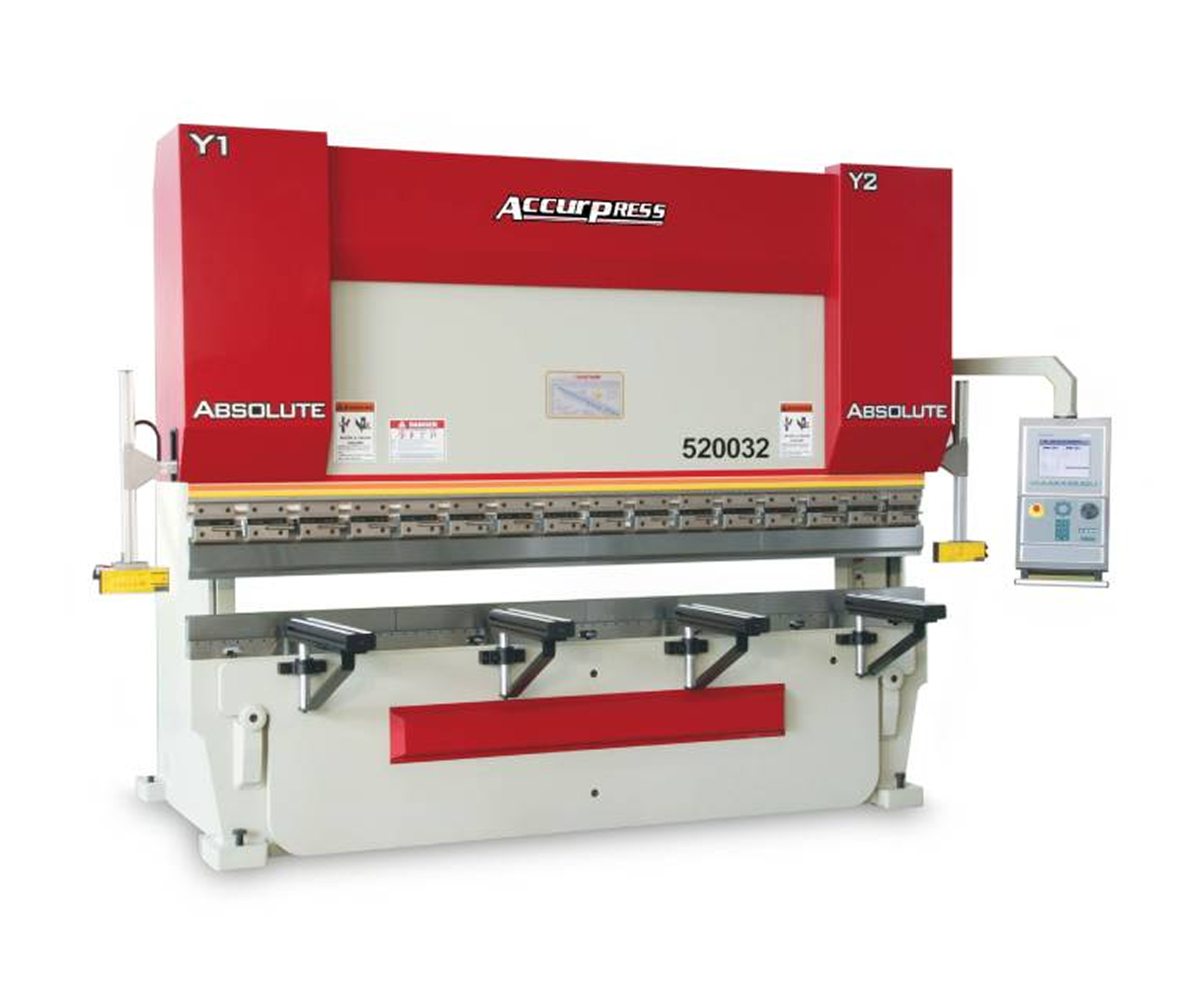

Accurpress Press Brake 520032 (200 T x 3200 mm)
- For accurate and perfect bending
- Any kind of precision bending for critical parts
- Very fast and time saving
Trumpf Trulaser 1030
Sheering with Capacity of 2500 Width x 6 MM

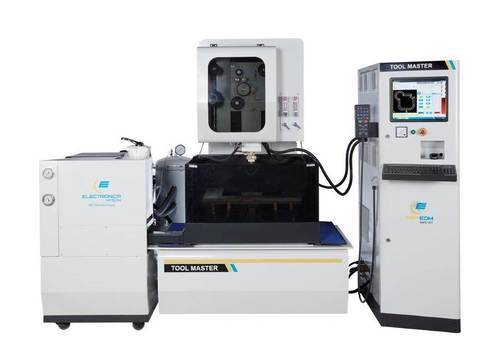

CNC EDM (Wire Cutting)
CNC WIRE CUT EDMS (JOB MASTER D-LITE)
| Particulars | Unit | Job Master D-lite |
|---|---|---|
| Table Size | mm | 630 x 470 |
| Work-tank Internal Dimensions | mm | 800 x 650 |
| Main Table Travel X,Y | mm | 400 x 300 |
| Auxiliary Table travel U,V | 30 | 80 x 80 |
| Z-Axis Travel (Max.Thickness) | mm | 250 |
| Job Admit | mm | 245 |
| Maximum Work-piece weight | Kg | 300 |

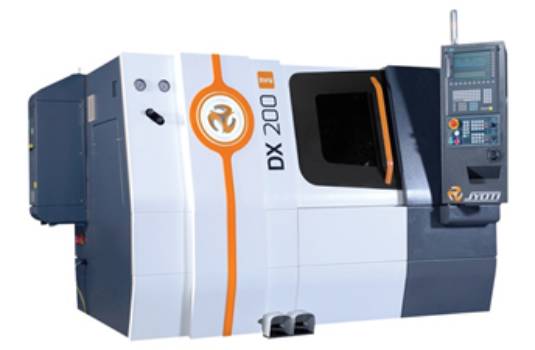

CNC TURNING CENTERS (DX 200 – 5A)
| Particulars | Unit | DX 200 – 5 A |
|---|---|---|
| Swing Over Bed | mm | 500 |
| Std.Turning Dia. | mm | 250 |
| Max.Turning Dia.* | mm | 365 |
| Max.Turning Length* | 30 | 500 |
| Accuracy Repeatability | mm | 0.005 |

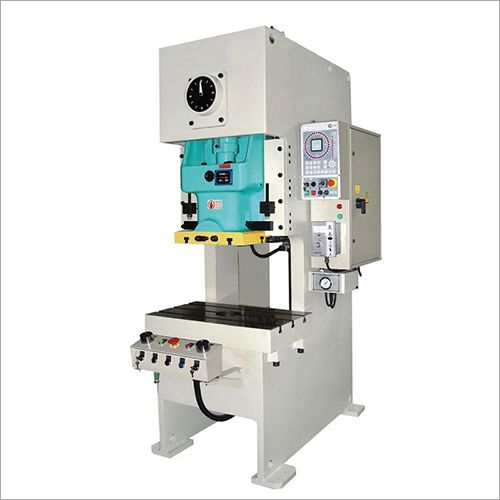

STAMPING PRESS

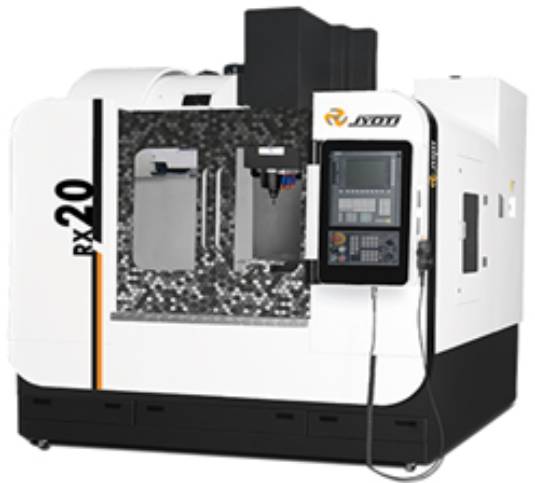

VERTICLE MACHINING CENTERS (RX 20)
TECHNICAL DATA
| Particulars | Unit | RX 20 |
|---|---|---|
| Table Size | mm | 1000X530 |
| X-Axis Travel | mm | 820 |
| Y-Axis Travel | mm | 510 |
| Z-Axis Travel | 30 | 510 |
| Distance. From spindle face to table top | mm | 150-660 |
| Accuracy Repeatability | mm | 0.005 |
WELDING FACILITY

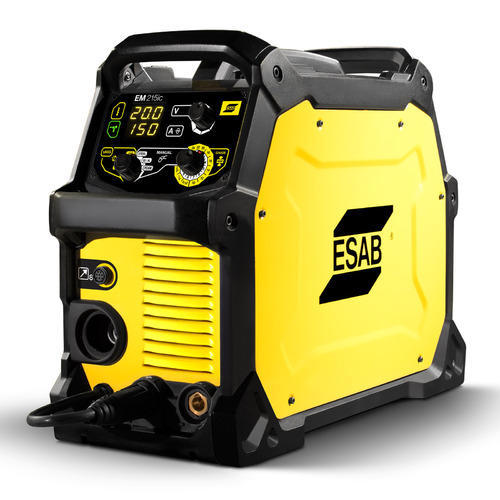

- MIG Welding
- ARC Welding
- ARGON Welding
- TIG Welding

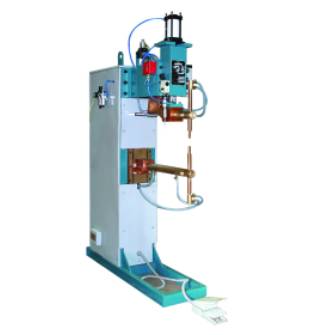

- SPOT Welding
- STUD Welding
- Projection Welding

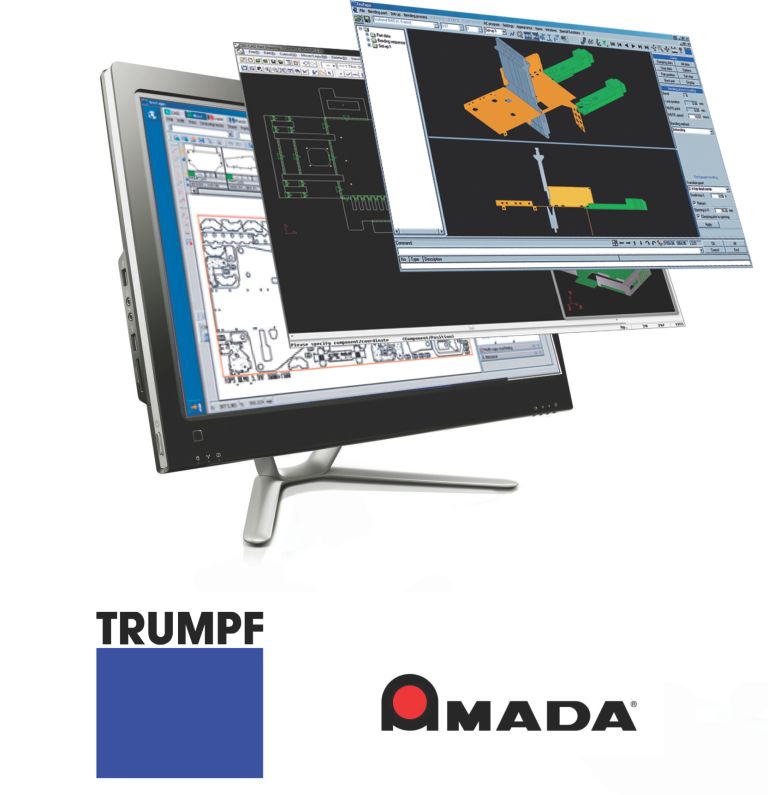

Software We Use

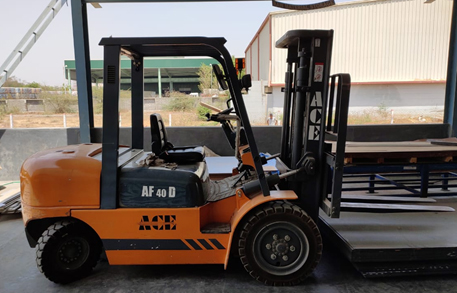

MATERIAL HANDLING EQUIPMENTS
- FORK LIFT (4000 KG)

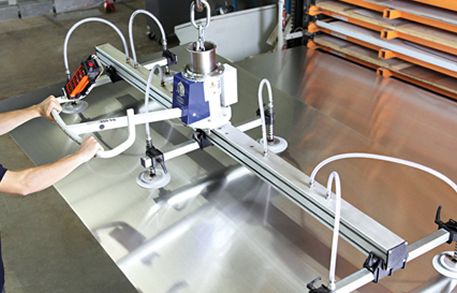

- VACCUME METAL SHEET LIFTER (350 KG)

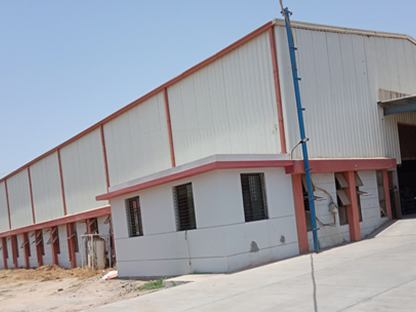

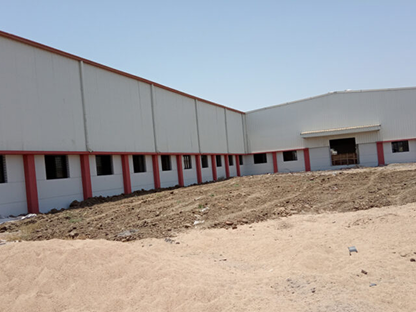

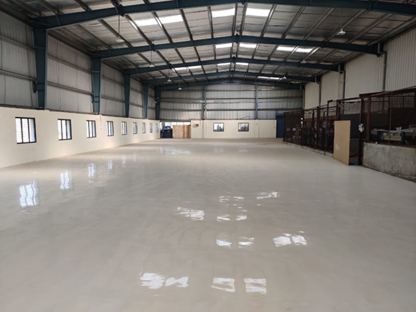

UPCOMING INFRASTRUCTURE FACILITIES
